FranScan


An innovative Ultrasonic solution to identify corrosion in challenging to reach locations.

Contact us

What is FranScan?

FranScan utilizes a combination of Phased Array Ultrasonics (PAUT) and Short Range Guided Wave (SRUT) to quantify material loss.

Originally developed for use on Annular plate testing on above ground storage storage tanks, this technology can be deployed where an enhanced SRUT inspection may be required such as:

  • Testing of Concrete Coated Interfaces
  • Corrosion under pipe supports (CUPS)
  • Scan under Vessel Saddles
  • Wall thickness under Scab corrosion

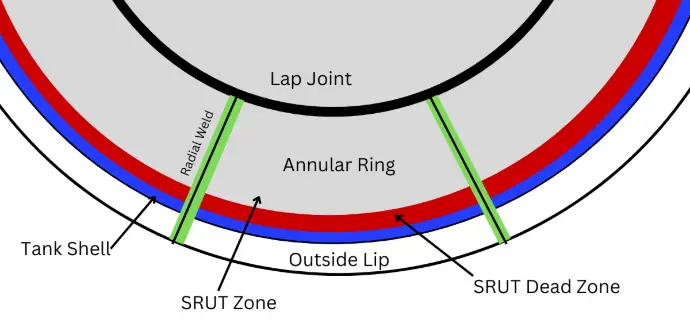

Eliminate Dead Zones

Conventional on-stream annular ring inspections deploy SRUT only. FranScan's combination of SRUT and PAUT eliminates the SRUT dead zone, allowing XSI to quantify material loss to within 1mm of accuracy from the outside of the tank. With our technology customers can effectively size pitting and corrosion under the fillet weld and up to 100mm inside the storage tank with full discrimination between product and soil side corrosion.

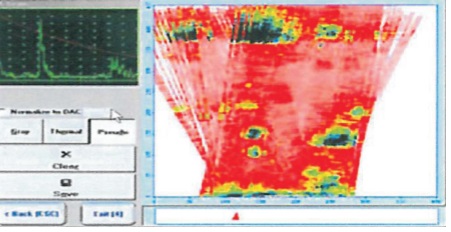

SRUT

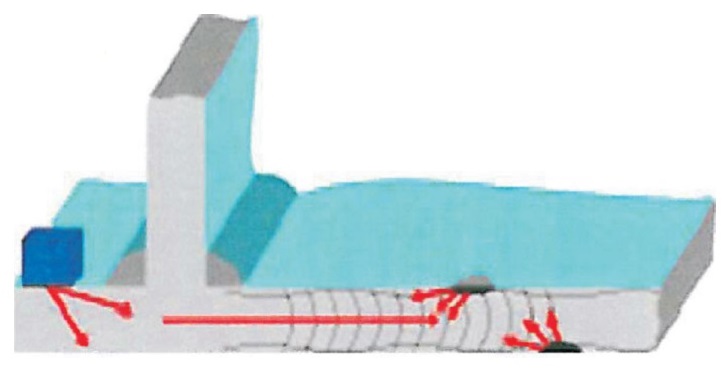

FranScan uses a combination of SRUT and PAUT. SRUT is used for its focusing capabilities and to obtain the depth required for a thorough inspection of the annular Ring. Limitations to SRUT for annular ring inspection include:

  • Top of Bottom Side Differentiation
  • Must have 1.5" spacing for Probe Placement
  • Its a screening technique - does not quantify material loss

This is where XSI differentiates ourselves from our competition. Using Fran scan you eliminate many of these limitations.




Complimentary Services

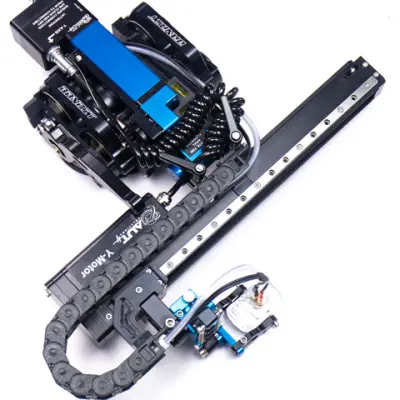

Automated UT

AUT can be deployed on your shell or roof to provide a comprehensive on-stream corrosion assessment.

Asset Integrity

Utilizes XSI's team of API 653 and 570 inspectors within your facility. Our integrated crews provide the experience, technical aptitude and competencies to select the right technology for your needs.

Robotics

XSI's submersible tank equipment can not only clean the bottom of your asset, but while conducting cleaning can provide a full condition assessment of the integrity of your tank floor.

​Pair FranScan with the below XSI service offerings to keep product in your tanks, process on-line and decrease your carbon foot print. Our suite of on-stream solutions keeps your assets running, making you money while ensuring the highest degree of quality.
